XCMG XCT75L6 Used Truck Cranes 75ton Second Hand Mobile Truck Crane

Used Truck Crane XCMG XCT75L6 Second Hand Truck Mobile Crane

Production Details:

• XCMG G-generation 75-ton truck crane, K-type outriggers, compact structure, performance, safety, reliability, economical and environmental protection, is a boutique model tailored for users.
• The overall lifting performance is 75-80 ton products in the industry, and the lifting performance of the whole machine is more than 20% higher than that of products of the same tonnage in the industry;
• Low-speed high-torque power system, strong power, strong off-road capability and low fuel consumption. Fuel consumption is reduced by 12%, and gradeability is improved by 15%;
• The new energy-saving hydraulic system, the double pump is divided into confluence, the speed is fast, and the compound action is good. The average fuel consumption under comprehensive working conditions is reduced by 8%, and the ride comfort and fretting performance are improved by 15%;
• The new human-computer interaction system makes driving more comfortable;
• A new generation of appearance, humanized design, user operation is more comfortable and convenient;
• This machine will leave the factory in 2021, the equipment is 90% new, maintained by the manufacturer, without any maintenance records, 58 meters boom, 20 tons of counterweight, 15 tons of heavy load travel, the maximum lifting height of 81 meters, excellent performance, there is a need for this car Welcome to contact us.

Product Parameters:

Parameter item	XCT75L6
Basic boom length (mm)	12400
Forward (mm)	1630
Chassis length (mm)	12790
Outrigger span (mm)	Vertical 8.45 (9.39) Horizontal 7.9 (5.6)
Wheelbase(mm)	1470+3950+1350
Tire distance(mm)	2316/2316/2063/2063
Overall length (mm)	14700
Overall width (mm)	2750
Overall height (mm)	3910
Approach angle (°)	16
Departure angle (°)	13
Curb weight (kg)	45805
Self-dismounting counterweight mass (kg)	20000
Engine model	MC11.36-50
Engine rated power/speed (kw r/min)	268kW/1900rpm
Working range*max. rated lifting Capacity(m*t)	3×75
The max. lifting moment of the basic boom (kN m)	3352
Outrigger span (vertical*horizontal)(m*m)	8.45*7.9(9.39*5.6)
Longest main boom (m)	58
The longest main boom + jib (m)	84.5
Main boom derricking up time (s)	55
Main boom telescoping ou time (s)	450
Max. rotation speed (r/min)	2
Main lifting speed (no-load four layers) (m/min)	145
Max. travel speed (km/h)	≥90
Min. turning diameter (m)	≤24
Max. gradeability (%)	≥45

XCMG Used Truck Cranes

XCT75L6 Used Truck Cranes

75ton Second Hand Mobile Truck Crane

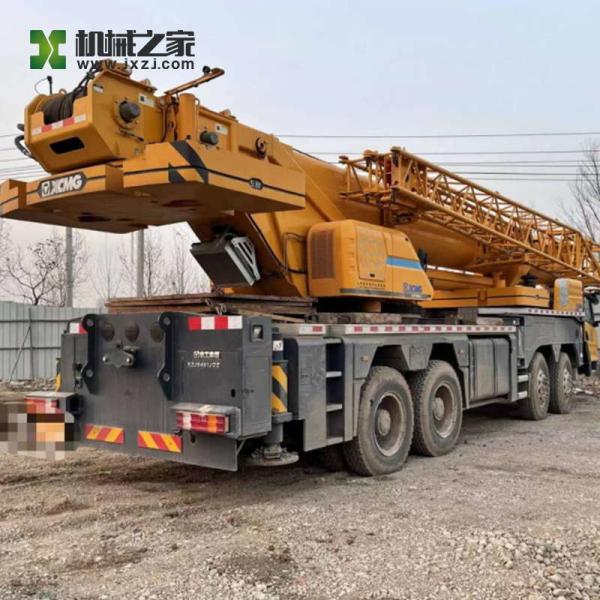

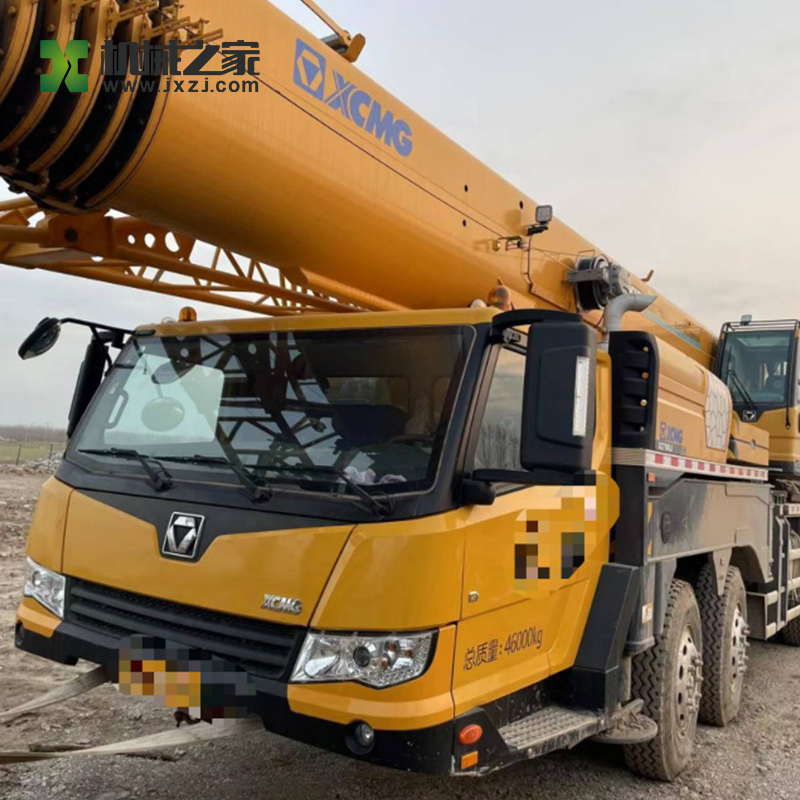

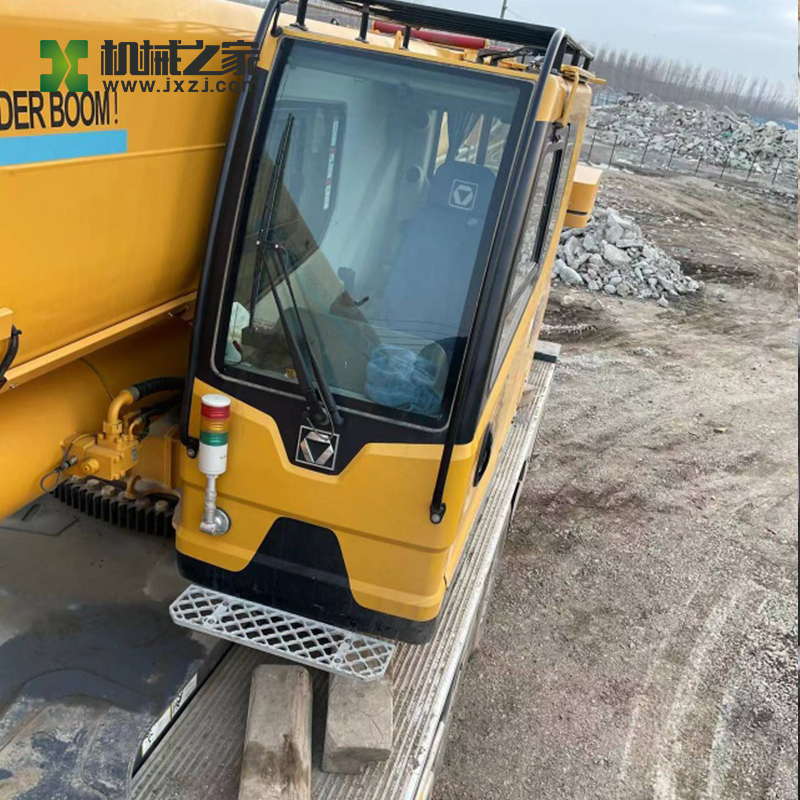

XCMG XCT75L6 Used Truck Cranes 75ton Second Hand Mobile Truck Crane Images
